Reciprocating Oil-Free Air Compressors – Industrial Applications

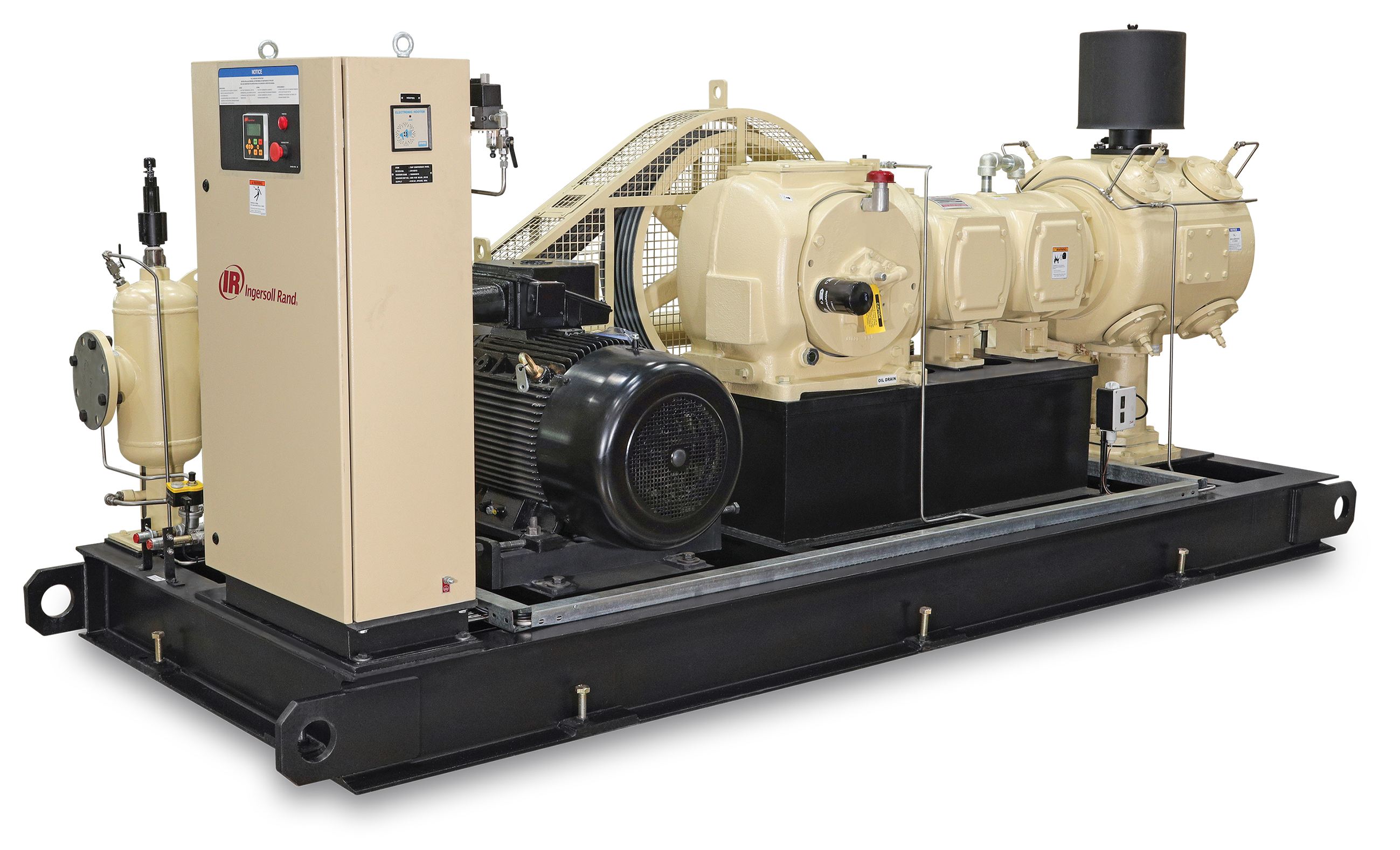

The Ingersoll Rand range of Reciprocating Oilfree Air Compressors offers delivery pressures of ~9 bar and a variety of volumetric flows that can meet even the most challenging requirements. The units can be offered in either single or two stage configurations and can be configured to deliver a complete turnkey solution with compressor, drive, controls, dryers and receiver all fitting on a compact skid. All units are fully tested in our ISO 9001 accredited facility to ensure they are fully operational as quickly as possible in your facility.
Features
- Non-lubricated 100% oil free, water cooled, continuous duty cycle rated.
- Rugged frame design-one-piece cast iron construction.
- Non lubricated, featuring long-life self-lubricating composite wearing components. Rifle drilled oil passage.
- Cylinders constructed with large cast-in water jackets for dimensional stability under continuous operation.
- Intercoolers/after coolers selected for optimal approach temperature.
- All internal components and piping are corrosion protected for extended life.
- Distance pieces feature two compartments, ensuring the lubricant is isolated from the cylinders.
- Pre-programmed Logic controller based control panel, with IP54 protection.
- Auto drain trap with bypass arrangement at Air Receiver.
- Two-step capacity control (0 - 100%).
- All compressor packages load tested at 100% full operating pressure.
- On two stage models - Horizontal balanced opposed design making the package compact, small foot print and easy to install
Model Specifications
Reciprocating Oil-Free Air Compressors - Industrial Applications Performance
Single Stage Packages
Two Stage Packages
• Atmospheric pressure: 14.7 PSIA, Temperature - 95 ⁰F & 70% RH considered.
• Cooling water inlet temperature 90 ⁰F considered & cooler CTD will be 20 ⁰F.
• The performance is at the compressor discharge flange.
• The performance is subjected to tolerances as per test standard.
