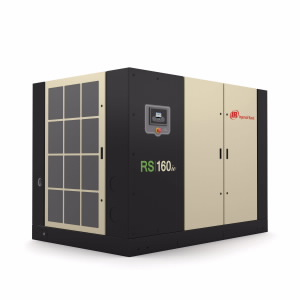

Next Generation R Series 90 - 160 kW Oil Flooded Rotary Screw Compressors
Ingersoll Rand works to keep you ahead of your competition with Next Generation R-Series air compressors that boost productivity, lower operating expenses and extend equipment life. Next Generation R-Series air compressors. The intelligence you need—to win.
Features
- World class efficiency and air flow: State-of the-single and two-stage airends provide design flexibility with up to 10% improved efficiency and up to 10% more airflow capacity
- Decrease Energy Use: Premium® Efficiency TEFC motor delivers significant energy savings
- Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
- Reliable free-floating cooling system with reduced thermal stress for improved durability
- Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime
- Ease of Maintenance: Hinged-door service access with integrated handles provides quick, easy access to all user-maintainable components
- Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser
- Flexible Design Options: Air-cooled, water-cooled and harsh environment options (low and high ambient, outside operation) are available to best match your operating requirement
Model Specifications
Technical Data
Model
Max pressure
(barg)
Nominal power
(kW)
Capacity (FAD)*
m3/min
Dimensions (L) mm
Dimensions W (mm)
Dimensions H (mm)
Weight (kg)
RS90IE-A7.5
7.5
90
19.3
2855
1899
2107
3270
RS90IE-A8.5
8.5
90
18.2
2855
1899
2107
3270
RS90IE-A10
10
90
16.4
2855
1899
2107
3270
RS90IE-A14
14
90
13
2855
1899
2107
3270
RS110IE-A7.5
7.5
110
23.5
2855
1899
2107
3364
RS110IE-A8.5
8.5
110
22.1
2855
1899
2107
3364
RS110IE-A10
10
110
20
2855
1899
2107
3364
RS110IE-A14
14
110
16.4
2855
1899
2107
3364
RS132IE-A7.5
7.5
132
27.7
2855
1899
2107
3646
RS132IE-A8.5
8.5
132
26.2
2855
1899
2107
3646
RS132IE-A10
10
132
23.8
2855
1899
2107
3646
RS132IE-A14
14
132
19.6
2855
1899
2107
3646
RS160IE-A7.5
7.5
160
31.9
2855
1899
2107
4194
RS160IE-A8.5
8.5
160
31
2855
1899
2107
4194
RS160IE-A10
10
160
28.9
2855
1899
2107
4194
RS160IE-A14
14
160
23.9
2855
1899
2107
4194
RS90IE-W7.5
7.5
90
19.3
2855
1899
2107
3478
RS90IE-W8.5
8.5
90
18.2
2855
1899
2107
3478
RS90IE-W10
10
90
16.4
2855
1899
2107
3478
RS90IE-W14
14
90
13
2855
1899
2107
3478
RS110IE-W7.5
7.5
110
23.5
2855
1899
2107
3572
RS110IE-W8.5
8.5
110
22.1
2855
1899
2107
3572
RS110IE-W10
10
110
20
2855
1899
2107
3572
RS110IE-W14
14
110
16.4
2855
1899
2107
3572
RS132IE-W7.5
7.5
132
27.7
2855
1899
2107
3854
RS132IE-W8.5
8.5
132
26.2
2855
1899
2107
3854
RS132IE-W10
10
132
23.8
2855
1899
2107
3854
RS132IE-W14
14
132
19.6
2855
1899
2107
3854
RS160IE-W7.5
7.5
160
31.9
2855
1899
2107
3986
RS160IE-W8.5
8.5
160
31
2855
1899
2107
3986
RS160IE-W10
10
160
28.9
2855
1899
2107
3986
RS160IE-W14
14
160
23.9
2855
1899
2107
3986
